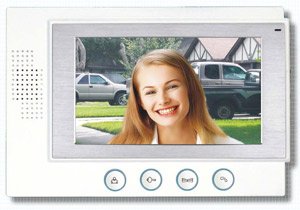

VIDEO DOOR PHONE

---

• Products /
• Video Door Phone

Features

---

- Damage-proof , oxidation-proof outdoor unit.
- 7’’color Image with low power consumption, no radiation and high definition.
- Hands-free intercommunication.
- Electronic-controlled lock release function.
- Monitoring the outdoor.
- 8 chord melody ring for option .
- Adjustable volume of melody rings and talking.
- Brightness and chroma can be adjusted.
- Enclosed adapter and 15m cable for DIY.
- Slim-fit designed aluminum alloy panel indoor unit for fashionable and luxurious life.
- The indoor unit can be hung on the wall.

Performance Parameter

---

- Adapter Input voltage: AC100V-240V 60HZ/50HZ
- Adapter Output voltage/current: DC12V 1200mA
- Extending Talking time:120s±10%
- Extending Monitoring time: 40s±10%
- Working distance: 50m(4×0.5mm2)
- Power consumption: Static state:0.5W ; talking state:10W
- Talking time:120s±10%
- Illumination:2LUX
- Visual angle: 92° wide angle

Specification

---

Screen size	37.0(16:9 diagonal) inch
Definition	1440(H)×234(V) dots
Working area	154.08(H)×86.58(V) mm
Pixel size	0.107(H)×0.370(V) mm
Screen size	166.0(w) ×100.0(H) ×7.2(D)(typ.) mm

Outdoor unit

Working temperature : -20°C~+50°C
Resolution : shall be not less than 380 lines
Size of outdoor station:107(w) ×182(H) ×55(D) mm

Indoor unit

Working temperature : -10°C~ +40°C
Relative humidity: 10% ~90%(RH)
Power consumption: less than 10w
Size of indoor unit : 240(w) ×160(H) ×17(D) mm
