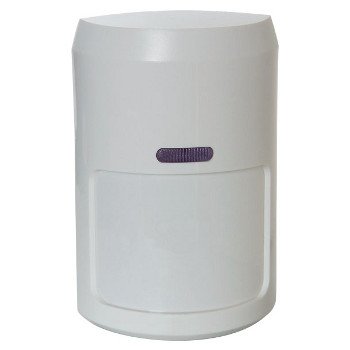

• Digital PIR Detector TITAN DL

Features

Digital PIR Detector, Pet Immunity function up to 20kg.

Functional features

• Digital Processing Algorithm
• Suitable for applications in high class intruder alarm systems - for bank offices, storehouses, etc.
• Operating range up to 15m
• 90o coverage area
• 54 detection zones
• Standard high mounting 1.5 - 3.6m (2.1m recommended)
• White Light Immunity (WLI) - 4000Lux
• Digital bi-directional temperature compensation
• Operating temperature from -20 up to 50ºC
• Power supply: +9 V DC to +18 V DC
• Pet immunity - 12/20kg
• Option - bracket for wall or ceiling mounting
