Stock: Available
Price: Not Mension
Buy: In our Dubai shop. Out of Dubai, Call Us
Install: Taking as project
Brand: Fox Tech
Share This

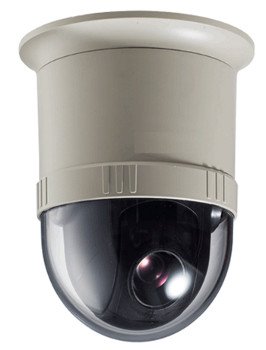

Tweet- 1/4" Super HAD image sensor
- Built-in Optical 10x AF Zoom (f3.8~38mm)
- High Quality Images with 520TV lines (Color) / 570TV lines (B/W)
- 360˚Endless Panning and 0˚~180˚Tilt angle (Digital Flip)
- IR Cut Filter Removable Day&Night
- 63 Presets, 8 Tours, 4 Scan, 4 Pattern, Autoscan
- 4 Zones of Image Masking for Privacy
- DNR Technology enabled Hard Disk Saver
- Additional Balun Video Out
- Easy Interface with Multiple Protocols (Pelco-D,Pelco-P, Wonwoo)
- ABS body and Polycarbonate Dome Cover
- Optional Outdoor Housing (IP 66) & Brackets.
| Active pixel | PAL: 758(H)×592(V) NTSC: 768(H)×494(V) |
| Alarm | 2 input, 1 relay output |
| Casing material | Polycarbonate |
| Day/Night function | Yes |
| Focus Length | 3 mm～38 mm |
| Horizontal resolution | 570Lines |
| Image Sensor | 1/4″Super HAD image Sensor CCD (SONY) |
| Mini Illumination | 0.7Lux/F1.4(Color) 0.01Lux/F1.4(B/W) |
| Panning angle | 360°Continuous rotation |
| Pattern | 1 Pattern (record user control up to 40sec) |
| Power | 12DCV,2A |
| Preset | 63 positions |
| Signal System | PAL or NTSC |
| Speed | Manual control speed 0°～50°/sec(Pan); .5°～50°/sec(Tilt) |
| Tilt angle | 0°～90° |
| Tour | guard tours |
| Zoom Ratio | 10×Optical zoom with auto focus (10× digital zoom) |
